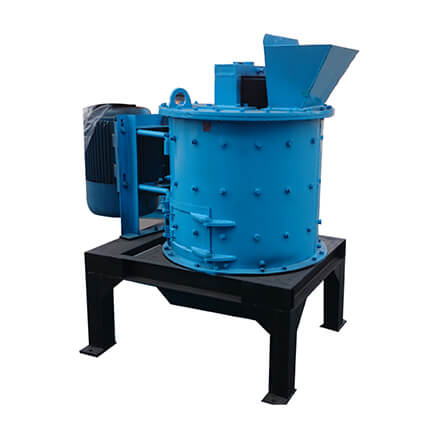

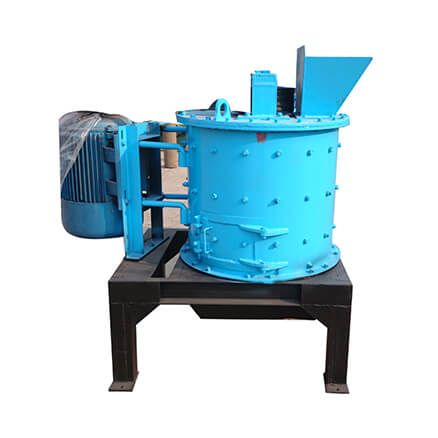

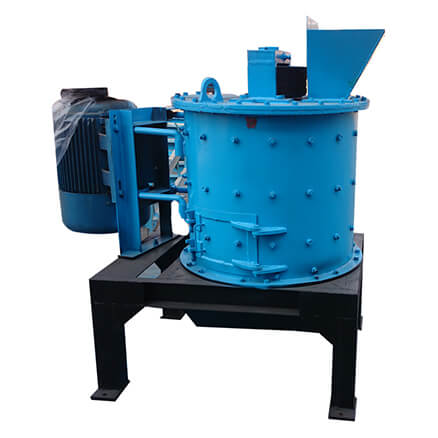

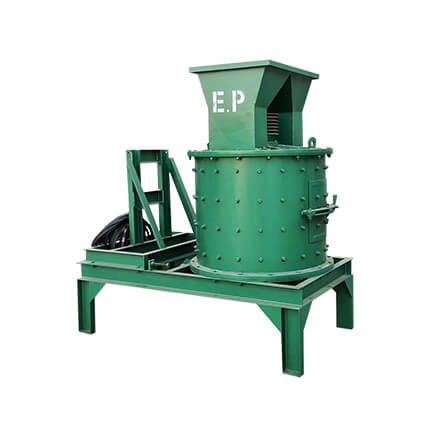

Compound crusher is one of the commonly used equipment in the ball briquette production line. It generally used for crushing sandstone, iron ore, gypsum, blast furnace slag, coal gangue, lump coal, etc. The machine consists of power engine, main shaft, cylinder, upper cover, and base. When operating, the motor drives the main shaft to rotate. The main shaft is equipped with hammerheads. The material enters the machine from the upper feed mouth and falls by gravity. The material is continuously broken by a series of impacts of the high-speed rotating hammerheads and then discharged from the lower discharge port.
1． Simple and reasonable structure, low operating cost. Low wear by using the theory of stone hit stone;
2． High crushing efficiency and energy efficiency;
3． The ability of both fine crushing and coarse grinding functions;
4． Little influenced by the moisture content of the material, the moisture content can reach about 8%;
5． Working noise is less than 75 decibels, small dust pollution;
6． Little impeller self-lining wear and easy maintenance.
|Model||Power (kw)||Input size (mm)||Output size (mm)||Weight (t)||Size (mm)|
