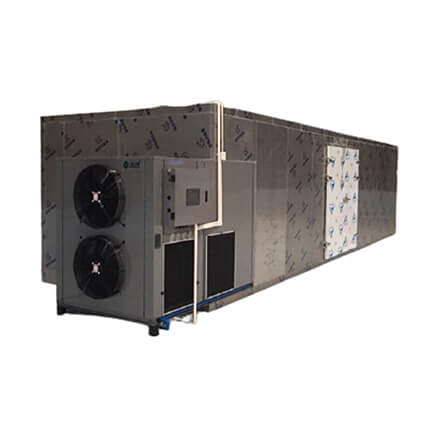

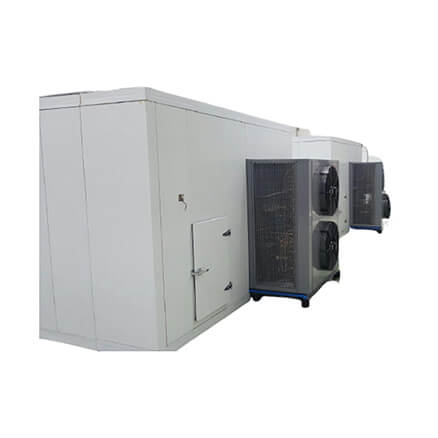

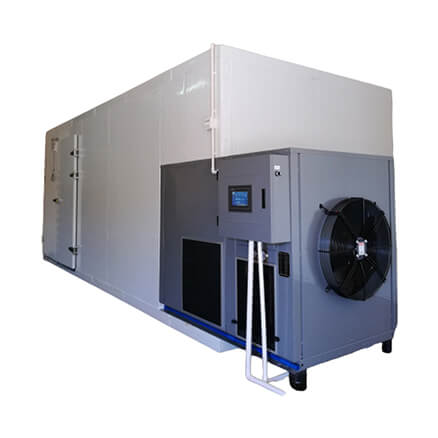

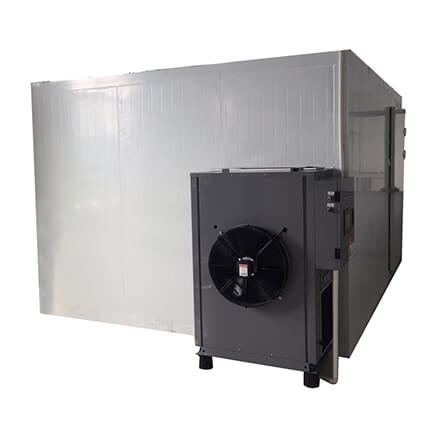

Heat Pump Dryer

Production line introduction :

By making the working substance to continuously go through the whole process of evaporation → compression → condensation → throttling → re-evaporation, the heat in the external low-temperature environment is transferred to the drying room and the refrigerant operates in the system under the action of the compressor.

Heat Pump Dryer

The heat pump dryer is mainly composed of evaporator, compressor, condenser and expansion valve. By making the working substance to continuously go through the whole process of evaporation → compression → condensation → throttling → re-evaporation, the heat in the external low-temperature environment is transferred to the drying room and the refrigerant operates in the system under the action of the compressor. The heating efficiency of the heat pump dryer is much greater than that of other heating equipment. Besides, it can save energy greatly, and reduce pollutant emissions.

Highlights

1. Convenient installation: convenient to be installed and remove; small occupied area, can be installed both indoors and outdoors;

2. Efficient and environmentally friendly, high drying quality: it can absorb a large amount of heat energy from the air with only a small amount of electrical energy; saving operating costs;

3. Environmental protection and pollution-free: without any residues and emissions; it is a sustainable and environmentally friendly product;

4. Safe and reliable operation: The whole operating system is different from the traditional dryers; it is an absolutely safe and reliable semi-closed dryer;

5. Long service life, low maintenance cost: made by proven technique, stable performance, reliability, long service life, fully automated operation, and intelligent control;

6. Comfortable, convenient, automated, and highly intelligent: the self-controlled constant temperature device will dry continuously every 4 hours;

7. Wide application range, not affected by the season: It can be widely used in heating and drying operations in the chemical, food, medicine, paper, leather, wood, agricultural and sideline product processing industries;

8. Touch screen control panel: adopted with the PLC system, the temperature, and humidity, etc. can be adjusted as your need;

9. The heat pump dryer not only has the drying function, but also has the cooling and heating functions.

Technical Parameter

Model JK-ZT-HGJ03CH JK-ZT-HGJ06CH JK-ZT-HGJ10CH JK-ZT-HGJ12CH
Voltage/HZ (kw) 380V/~220V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz
Rated power (kw) 2.8 5.2 9.3 11.2
Rated current (A) 5.5 10.8 18.5 22.5
Heating capacity (kw) 10.5 21 35 42
Cooling capacity (kw) 7.8 18 25 32
Dehumidification capacity (L/H) 12 25 42 50
Maximum power (kw) 3.5 6.6 11.2 13.1
Maximum current (A) 7.1 13.1 22.5 26.5
The highest temperature of the drying room (℃) 75 75 75 75
Ambient temperature range (℃) 0~43 0~43 0~43 0~43
Maximum exhaust pressure (Mpa) ≦3.0 ≦3.0 ≦3.0 ≦3.0
Noise dB (A) ≦75 ≦75 ≦75 ≦75
Weight (kw) 180 285 380 500
Dimensions (mm) 1675*860*1280 1760*1060*1280 2120*1356*1590 2120*1356*1590
Wind direction Flat surface 360 Flat surface 360 Flat surface 360
