Hammer Mill
The typical production process of biomass briquette making machine:
Hammer mill → Hot Air Dryer → Biomass briquette making machine → Carbonization furnace
Zhengzhou E.P Machinery Co., Ltd. is a professional machinery manufacturing company combined with scientific research, production, and sales businesses that mainly produces biomass briquette supporting equipment such as charcoal briquette machines, biomass briquette production lines, crushers, carbonization furnace, etc. E.P Machinery company has its own technology research and development team, including the briquetting making machine research and development project department. E.P Machinery has 25 technical research and development personnel, and 8 engineers with doctoral and master degrees. E.P is a professional manufacturer of biomass energy machinery in China that combines research, development, manufacturing, installation and debugging businesses.
Biomass fuel briquettes can be used to replace traditional solid fuels and partly replace traditional liquid gas fuels, such as coal and petroleum. Fuel boilers, gas boilers, and oil-fired boilers can all be replaced with biomass fuel briquettes. After drying and briquetting by the machine, the biological fiber is recombined under high temperature and high pressure without any additives. The regular shaped biomass fuel briquettes produced are of various specifications and can be directly used in boilers and other industrial fields.
Applicable raw materials:
Wood：Wood (such as rubber trees, pine, eucalyptus, willow, acacia), sawdust, wood shavings, and wood chips;
Agricultural waste : husk (such as rice husk, rice bran, wheat husk, etc.), straw (such as corn stalk, wheat stalk, canola stalk, cotton stalk, etc.), bagasse, peanut husk, pineapple peel, reed, soybean stalk, etc.
Others : coconut shell, palm fiber, palm kernel shell (PKS), waste paper, grass (such as alfalfa, king grass, elephant grass), moso bamboo, and other biomass waste.

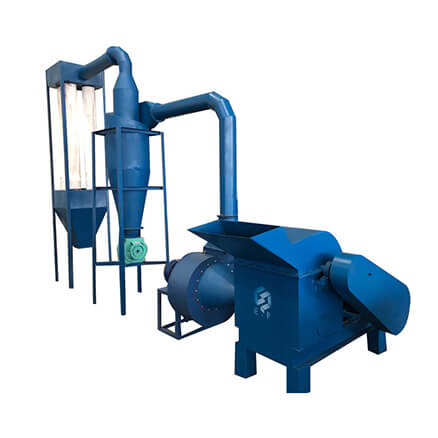

Hammer Mill
Hammer mills are widely used for wood crushing, such as wood branches, wood chips, leaves, rice husks, cotton stalks, coconut shells, lump charcoal, etc. It produces strong impact and friction on the materials by its high-speed rotating hammers. It has the characteristics of simple structure, good versatility, strong adaptability and high production efficiency. The hammer mill is mainly composed of a base, rotor, an upper casing, and a feed guide plate, etc. When operating, the raw materials enter the machine through the top, and enter the crushing chamber from the left or right through the feed guide plate. Under the impact of the high-speed rotating hammer and the friction of the sieve plate, the materials are gradually crushed, and passes through the screen hole and discharged from the base outlet. The crushed materials are less than 5mm, which are very suitable for the further processing of the wood briquetting and pelleting machines.
Highlights
1． Equipped with a cyclone dust collector, more environmentally friendly.
2． Uniform hammer plate, without deviation.
3． Reasonably designed hammers, the crushed material is finer and more uniform, not easy to cause internal fragmentation.
4． The hammer, lining plate, and impact plate are made of wear-resistant alloy material, which make sure it has longer service life.
5． Low and large feeding mouth, convenient to feed materials and install the production line.
6． Approve by dynamic balance test, no vibration.
Technical Parameter
| Model | Power | Capacity | Weight | Size |
| HSCP-E158 | 2.2kw | 80~150kg/h | 75/85kg | 750x450x730mm |
| HSCP-E198 | 4kw | 100~300kg/h | 120/140kg | 900x580x1020mm |
| HSCP-E420 | 7.5kw | 300~600kg/h | 225/255kg | 1120x820x1070mm |
| HSCP-E420 | 11kw | 400~700 kg/h | 260/290kg | 1120x820x1070mm |
| HSCP-E500 | 22kw | 800~1000kg/h | 600/630kg | 1240x970x1060mm |
| HSCP-E550 | 30kw | 1000~1200kg/h | 630/660kg | 1300x970x1150mm |
| HSCP-E600 | 48.5kw | 1200~1500kg/h | 650/700kg | 1660x1200x1700mm |
