Batch Type Carbonization Furnace

The typical production process of biomass briquette making machine:

Hammer mill → Hot Air Dryer → Biomass briquette making machine → Carbonization furnace
Zhengzhou E.P Machinery Co., Ltd. is a professional machinery manufacturing company combined with scientific research, production, and sales businesses that mainly produces biomass briquette supporting equipment such as charcoal briquette machines, biomass briquette production lines, crushers, carbonization furnace, etc. E.P Machinery company has its own technology research and development team, including the briquetting making machine research and development project department. E.P Machinery has 25 technical research and development personnel, and 8 engineers with doctoral and master degrees. E.P is a professional manufacturer of biomass energy machinery in China that combines research, development, manufacturing, installation and debugging businesses.
Biomass fuel briquettes can be used to replace traditional solid fuels and partly replace traditional liquid gas fuels, such as coal and petroleum. Fuel boilers, gas boilers, and oil-fired boilers can all be replaced with biomass fuel briquettes. After drying and briquetting by the machine, the biological fiber is recombined under high temperature and high pressure without any additives. The regular shaped biomass fuel briquettes produced are of various specifications and can be directly used in boilers and other industrial fields.

Applicable raw materials:

Wood:Wood (such as rubber trees, pine, eucalyptus, willow, acacia), sawdust, wood shavings, and wood chips;
Agricultural waste : husk (such as rice husk, rice bran, wheat husk, etc.), straw (such as corn stalk, wheat stalk, canola stalk, cotton stalk, etc.), bagasse, peanut husk, pineapple peel, reed, soybean stalk, etc.
Others : coconut shell, palm fiber, palm kernel shell (PKS), waste paper, grass (such as alfalfa, king grass, elephant grass), moso bamboo, and other biomass waste.

Batch Type Carbonization Furnace

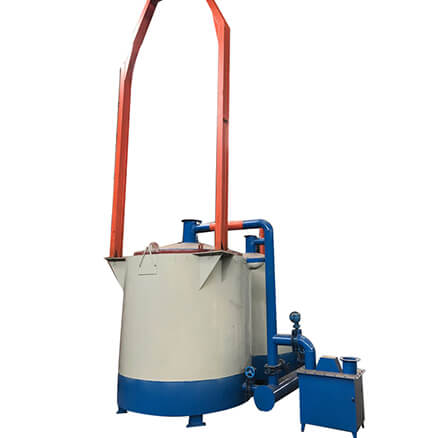

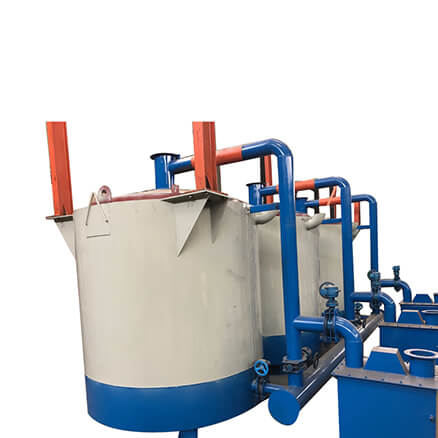

The batch type carbonization furnace is an energy-saving and environmentally friendly charcoal making equipment, which is widely used for carbonizing wood sticks, logs, biomass briquettes, and other large wood materials. The furnace is operated in batches. The equipment is mainly composed of furnace body, furnace cover, heating chamber, exhaust pipes, etc. Our batch type carbonization furnace is generally equipped with two inner tanks. When one tank is carbonized, the other one is cooled outside. Our batch type carbonization furnace is designed by using advanced combustible gas circulation technology, purification and circulation combustion technology. Thus the gas (CO, CH4, O2, etc.) produced by the carbonization furnace can be reused. Besides, it also has a by-product collection system for reusing tar and wood vinegar.

Highlights

1. It can be equipped with 2 or more inner tanks to achieve continuous work.

2. The carbonization temperature is adjustable and controllable.

3. All combustible gases are returned to the furnace for combustion without exhaust emission.

4. The inner tank is made of refractory materials with high carbonization performance.

Technical Parameter

Model Power
(kw)
Capacity
(kg/d)
Size
(mm)
Weight(kg)
HSJX-TH02 4KW 600kg Furnace size : diameter 2m, height 2m
Inner tank size : diameter 1.5m, height 1.5m
furnace cover : diameter 1.6m, height 0.4m
Gross weight : 6198kg
Inner tank weight : 633kg
