Automatic Weighing & Batching System

Production line introduction :

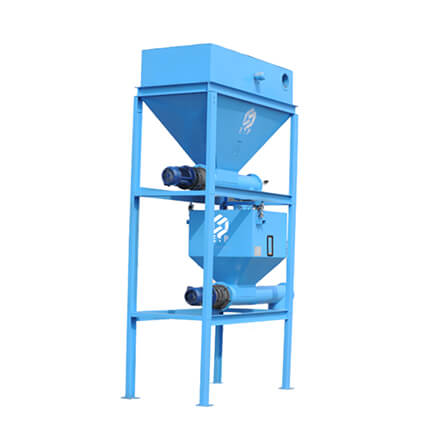

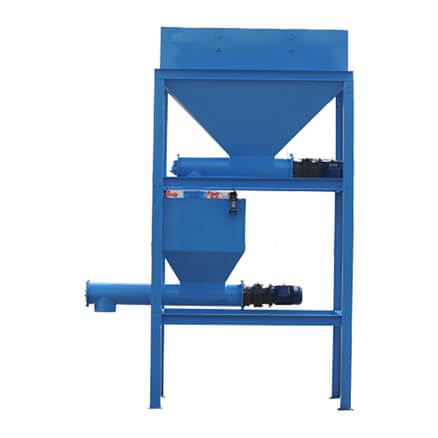

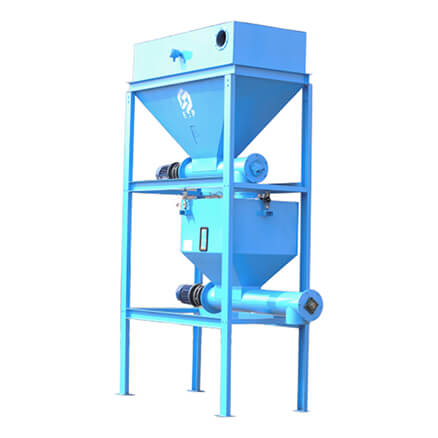

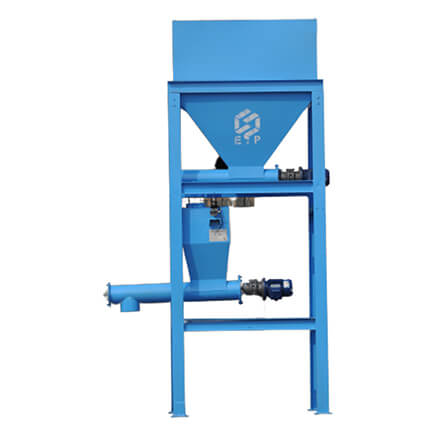

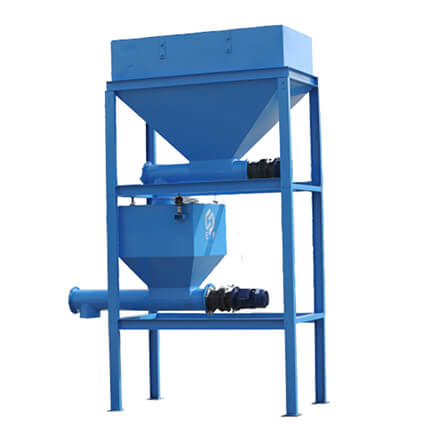

This system is newly designed by E.P own research and development. And it mostly applies in charcoal briquetting production line. And the system covers 2 hoppers (one for storage, one for weighing), automatic weighing section, PLC control, and weighing meters. This system is a kind of cumulative weighing, and widely used in accurate measurement of materials and automatic batching during production.

Automatic Weighing & Batching System

This system is newly designed by E.P own research and development. And it mostly applies in charcoal briquetting production line. And the system covers 2 hoppers (one for storage, one for weighing), automatic weighing section, PLC control, and weighing meters. This system is a kind of cumulative weighing, and widely used in accurate measurement of materials and automatic batching during production.

In Charcoal briquette forming process, binder is a necessary element to form into solid briquettes. It means the charcoal briquetting production requires charcoal powder and binder mixing together and evenly, and the percentage of binder is very important to make good quality briquettes.

Highlights

a. Automatic PLC control weighing system.

b. Advanced batching system to control and calculate the percentage of charcoal and binder.

c. The precision could reach 0.1kg.

d. Level sensor to control feeder conveyor’s start and stop.

Technical Parameter

Model Power (kw) Capacity (pcs) Hoppers Quantity (m3) Weight (kg) Size (LxWxH) (mm)
HKLC-C01 2.2x2 3 2 720 2000x900x3100
HKLC-C02 2.2x2 2 2 680 1800*900*3100
HKLC-B01 1.5x2 1.5 2 460 1550x600x1000
HKLC-B02 1.5x2 1 2 400 1300x580x1000
